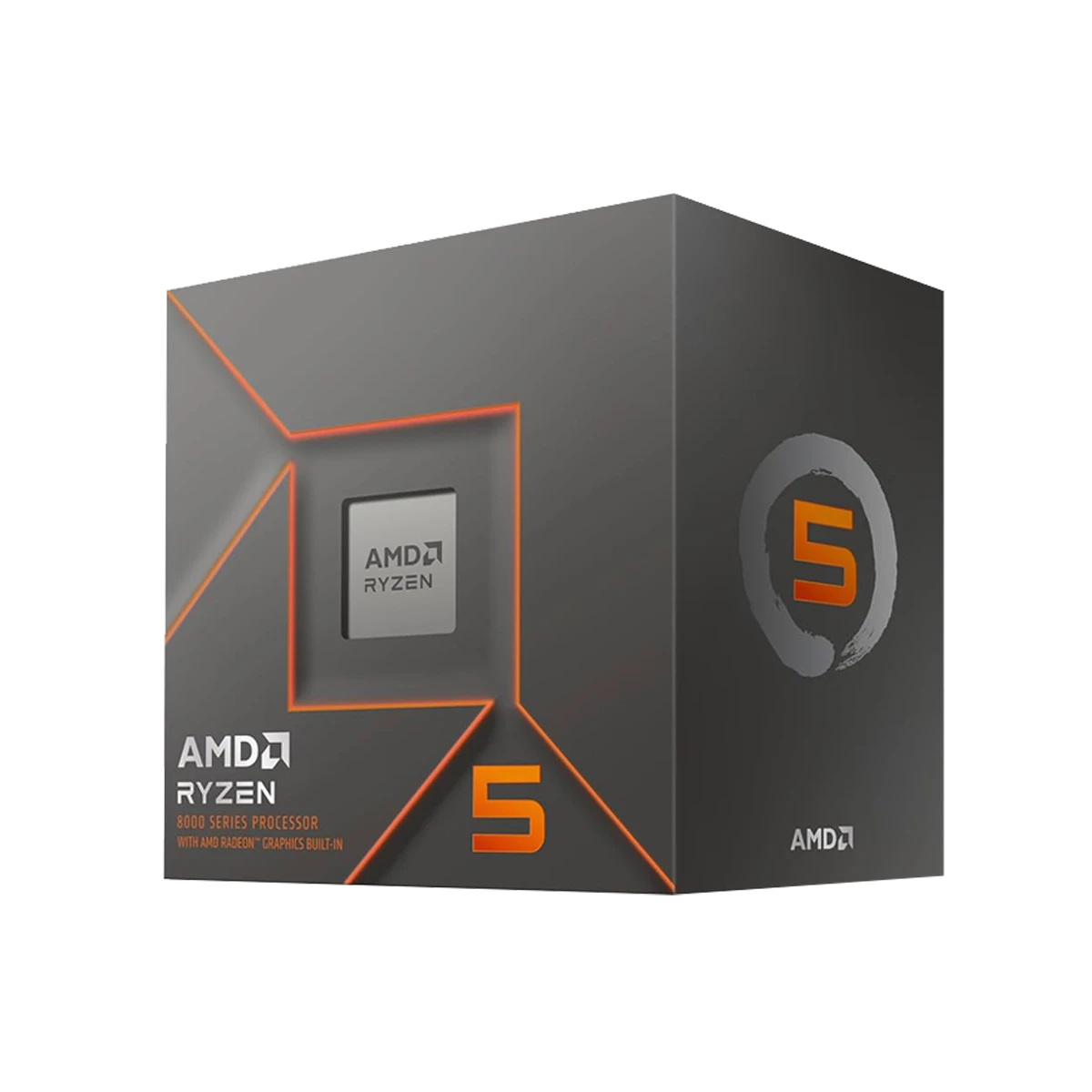

AMD Ryzen™ 5 8500G Desktop Processor
AMD Ryzen™ 5 8500G is the ultimate all-in-one desktop processor with AMD Radeon™ 740M Graphics capabilities.
General Specifications
Name: AMD Ryzen™ 5 8500G
Family: Ryzen
Series: Ryzen 8000 Series
Form Factor: Desktops
AMD PRO Technologies: No
Consumer Use: Yes
Regional Availability: Global
Former Codename: Phoenix
Architecture: 2x Zen 4 , 4x Zen 4c
# of CPU Cores: 6
Multithreading (SMT): Yes
# of Threads: 12
Max. Boost Clock: Up to 5 GHz
Max Zen4c Clock: Up to 3.7 GHz
Base Clock: 3.5 GHz
Zen4 Base Clock: 4.1 GHz
Zen4c Base Clock: 3.3 GHz
L2 Cache: 6 MB
L3 Cache: 16 MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
CPU Compute Die (CCD) Size: 137mm²
Package Die Count: 1
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
CPU Socket: AM5
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax):95°C
*OS Support:
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 4 (40Gbps) Ports: 2
Native USB 3.2 Gen 2 (10Gbps) Ports: 2
Native USB 2.0 (480Mbps) Ports: 1
PCI Express® Version: PCIe® 4.0
Native PCIe® Lanes (Total/Usable): 14 , 10
NVMe Support: Boot , RAID0 , RAID1
System Memory Type: DDR5
Memory Channels: 2
Max. Memory :256 GB
System Memory Subtype: UDIMM
Max Memory Speed:
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
Graphics Capabilities
Graphics Model: AMD Radeon™ 740M
Graphics Core Count: 4
Graphics Frequency: 2800 MHz
DirectX® Version: 12
DisplayPort™ Version: 2.1
DisplayPort Extensions: Adaptive-Sync , HDR Metadata , UHBR10
DisplayPort Max Refresh Rates (SDR):
7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR):
7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
HDMI® Version: 2.1
HDCP Version Supported: 2.3
USB Type-C® DisplayPort™ Alternate Mode: Yes
Multi-Monitor Support: Yes
Max Displays: 4
AMD FreeSync™: Yes
Wireless Display: Miracast
Max Video Encode Bandwidth (SDR):
1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
Max Video Decode Bandwidth:
1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
AMD SmartAccess Memory: Available
