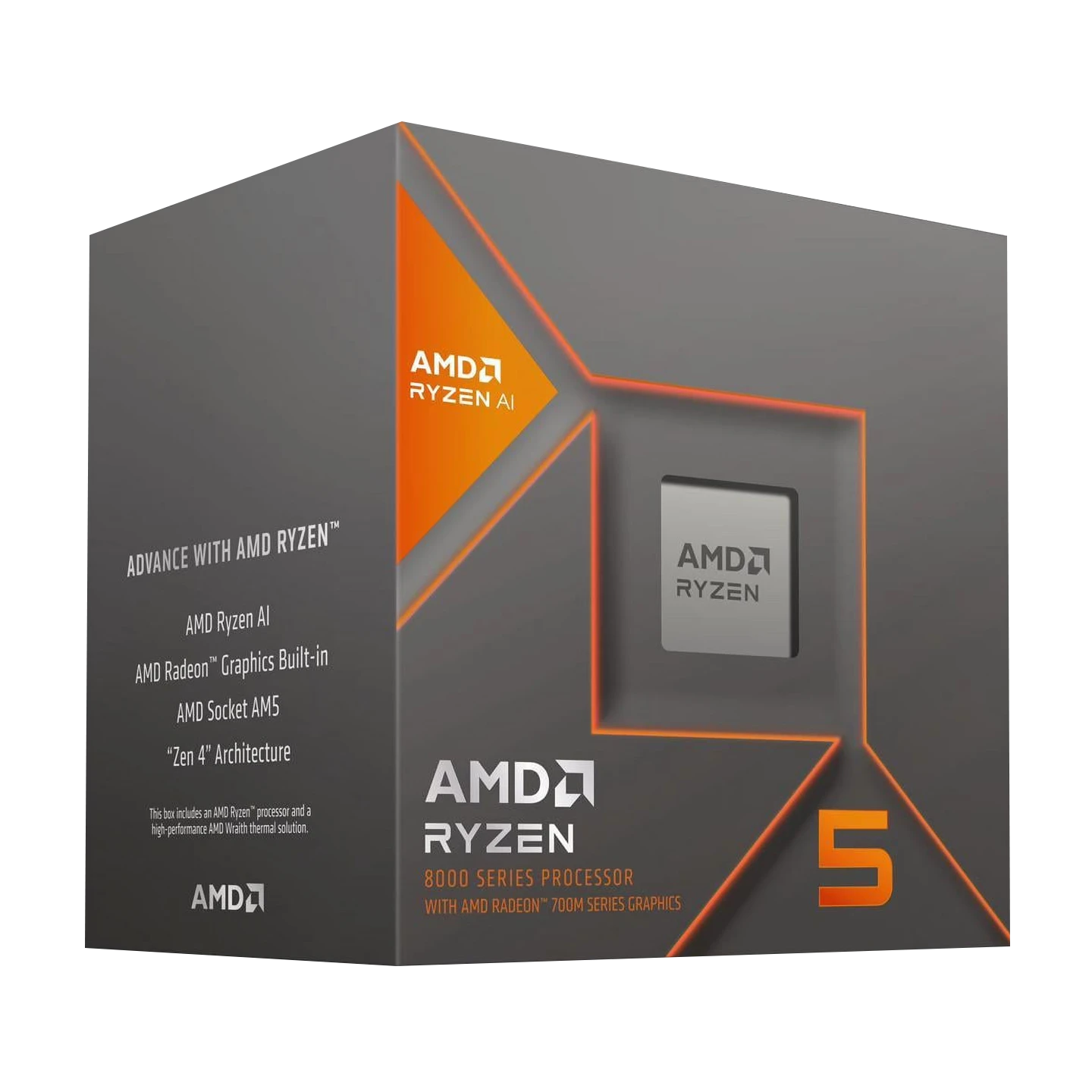

AMD Ryzen 5 8600G Specification –
Name AMD Ryzen™ 5 8600G
Family – Ryzen
Series – Ryzen 8000 Series
Form Factor – Desktops
AMD PRO Technologies – No
Consumer Use – Yes
Regional Availability – Global
Former Codename – Phoenix
Architecture – Zen 4
# of CPU Cores – 6
Multithreading (SMT) – Yes
# of Threads – 12
Max. Boost Clock – Up to 5 GHz
Base Clock – 4.3 GHz
L2 Cache – 6 MB
L3 Cache – 16 MB
Default TDP – 65W
AMD Configurable TDP (cTDP) – 45-65W
Processor Technology for CPU Cores – TSMC 4nm FinFET
CPU Compute Die (CCD) Size – 178mm²
Package Die Count – 1
Unlocked for Overclocking – Yes
AMD EXPO™ Memory Overclocking Technology – Yes
Precision Boost Overdrive – Yes
Curve Optimizer Voltage Offsets – Yes
AMD Ryzen™ Master Support – Yes
CPU Socket – AM5
CPU Boost Technology – Precision Boost 2
Instruction Set – x86-64
Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax) 95°C
*OS Support Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 4 (40Gbps) Ports 2
Native USB 3.2 Gen 2 (10Gbps) Ports 2
Native USB 2.0 (480Mbps) Ports 1
PCI Express® Version PCIe® 4.0
Native PCIe® Lanes (Total/Usable) 20 , 16
NVMe Support Boot , RAID0 , RAID1
System Memory Type DDR5
Memory Channels 2
Max. Memory 256 GB
System Memory Subtype UDIMM
Max Memory Speed
2x1R – DDR5-5200
2x2R – DDR5-5200
4x1R – DDR5-3600
4x2R – DDR5-3600
Graphics Capabilities
Graphics Model AMD Radeon™ 760M
Graphics Core Count 8
Graphics Frequency 2800 MHz
DirectX® Version 12
DisplayPort™ Version 2.1
DisplayPort Extensions Adaptive-Sync , HDR Metadata , UHBR10
DisplayPort Max Refresh Rates (SDR) 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR) 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz
HDMI® Version 2.1
HDCP Version Supported 2.3
USB Type-C® DisplayPort™ Alternate Mode yes
Multi-Monitor Support yes
Max Displays 4
AMD FreeSync™ yes
Wireless Display Miracast
Max Video Encode Bandwidth (SDR) 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV
Max Video Decode Bandwidth 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
AMD SmartAccess Memory Available
AI Engine Capabilities
Brand Name AMD Ryzen™ AI
AMD Ryzen™ AI Available
Performance Up to 16 TOPS
Security, Virtualization, and Manageability
AMD Enhanced Virus Protection (NX bit) Yes
