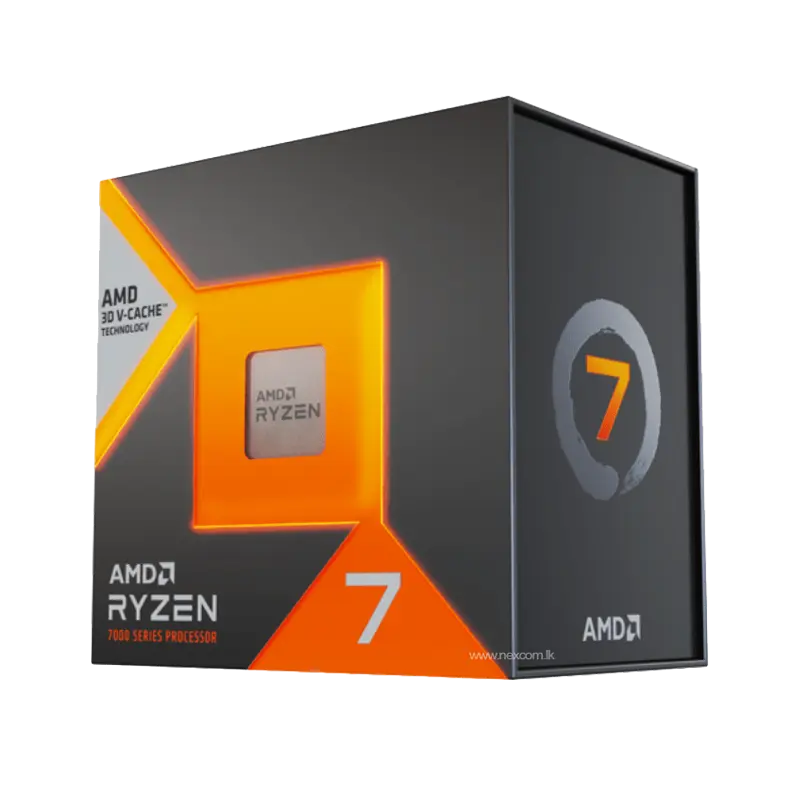

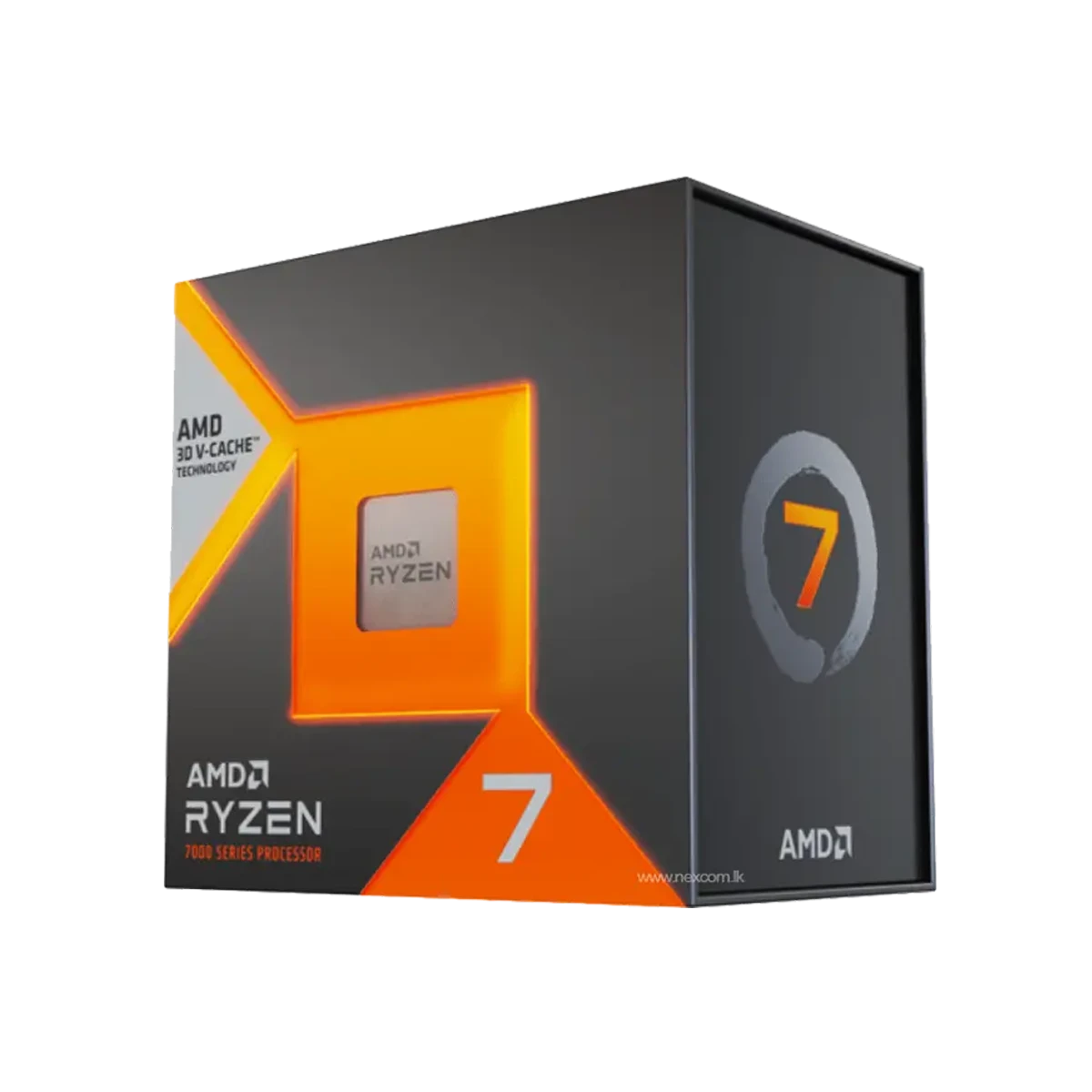

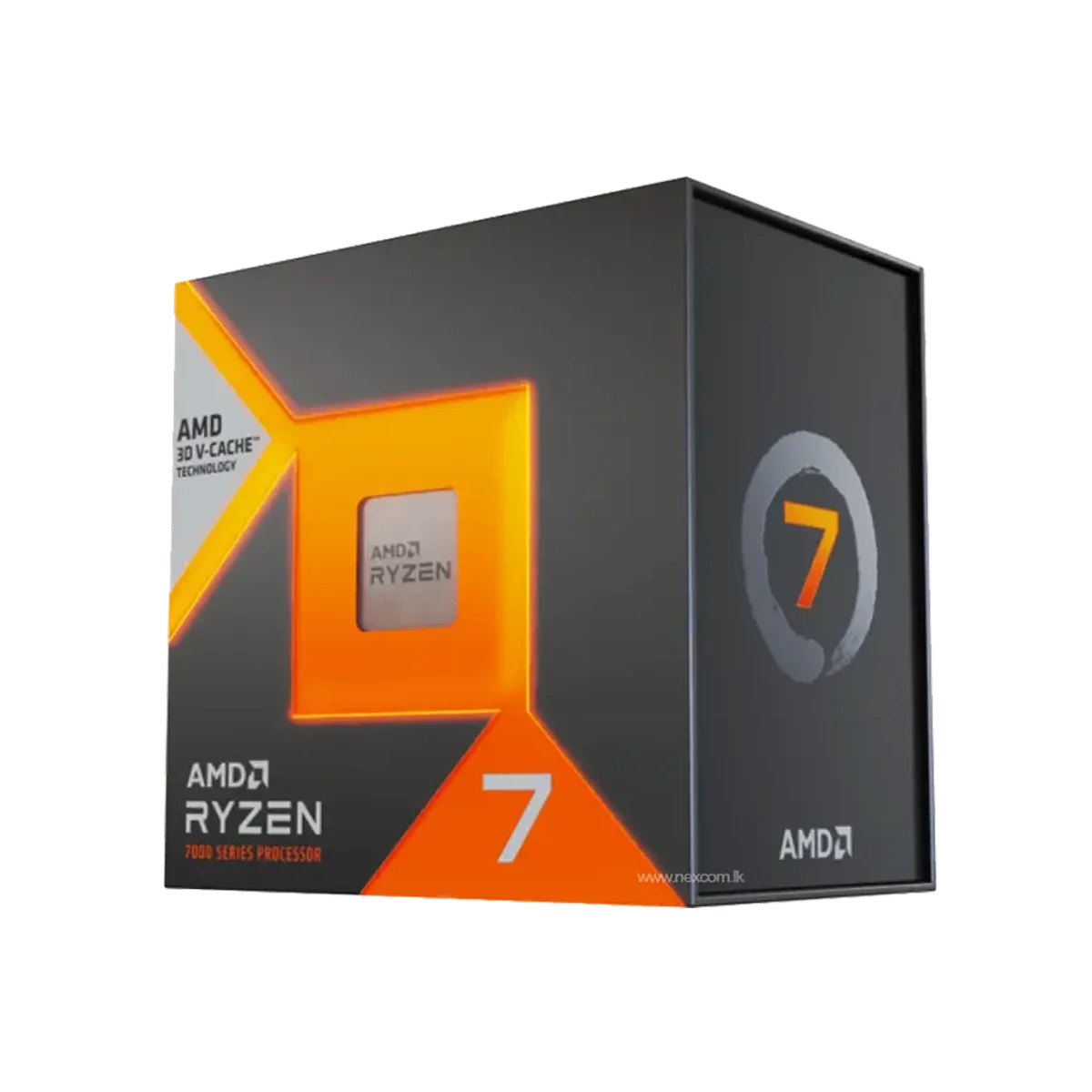

AMD Ryzen 7 7800X3D Desktop Processor (Not Sold Separately – Systems Only) – Tray

AMD Ryzen 7 7800X3D Specification –

General Specifications

Name
AMD Ryzen™ 7 7800X3D

Family
Ryzen

Series
Ryzen 7000 Series

Form Factor
Desktops

Market Segment
Enthusiast Desktop

AMD PRO Technologies
No

Consumer Use
Yes

Regional Availability
Global

Former Codename
Raphael AM5

Architecture
Zen 4

# of CPU Cores
8

Multithreading (SMT)
Yes

# of Threads
16

Max. Boost Clock
Up to 5 GHz

Base Clock
4.2 GHz

L1 Cache
512 KB

L2 Cache
8 MB

L3 Cache
96 MB

Default TDP
120W

Processor Technology for CPU Cores
TSMC 5nm FinFET

Processor Technology for I/O Die
TSMC 6nm FinFET

CPU Compute Die (CCD) Size
71mm

I/O Die (IOD) Size
122mm

Package Die Count
2

AMD EXPO™ Memory Overclocking Technology
Yes

Precision Boost Overdrive
Yes

Curve Optimizer Voltage Offsets
Yes

AMD Ryzen™ Master Support
Yes

CPU Socket
AM5

Supporting Chipsets
A620 , X670E , X670 , B650E , B650

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)
Not Included

Recommended Cooler
Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)
89°C

Launch Date
04/06/2023

*OS Support
Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps) Ports
4

Native USB 3.2 Gen 1 (5Gbps) Ports
0

Native USB 2.0 (480Mbps) Ports
1

Native SATA Ports
0

PCI Express® Version
PCIe® 5.0

Native PCIe® Lanes (Total/Usable)
28 , 24

Additional Usable PCIe Lanes from Motherboard
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support
Boot , RAID0 , RAID1 , RAID10

System Memory Type
DDR5

Memory Channels
2

Max. Memory
128 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support
Yes (Requires mobo support)

Graphics Capabilities

Graphics Model

AMD Radeon™ Graphics

Graphics Core Count
2

Graphics Frequency
2200 MHz

USB Type-C® DisplayPort™ Alternate Mode
Yes

Key Features
Supported Technologies
AMD EXPO™ Technology , AMD Ryzen™ Technologies
