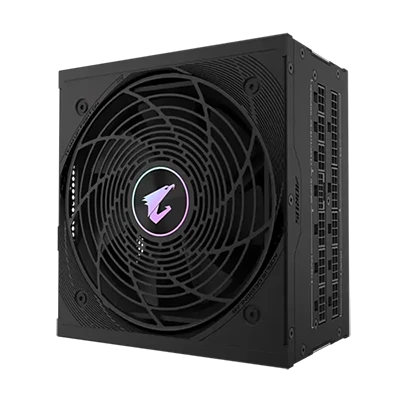

AORUS ELITE P1000W 80 Plus Platinum Modular Power Supply : Specification
- Model
- GP-AE1000PM PG5
- Type
- Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
- PFC
- Active PFC (>0.9 typical)
- Input Voltage
- 100-240 Vac (full range)
- Input Current
- 15-6.5A
- Input Frequency
- 60-50 Hz
- Output Capacity
- 1000W
- Dimensions
- 150 x 140 x 86mm
- Fan Type
- 120mm Fluid Dynamic Bearing (FDB) Fan
- 80 PLUS
- Platinum
- Efficiency
- 92% at typical load
- MTBF
- >100,000 hours
- Protections
- OVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal
- 100-150ms
- Hold Up Time
- >16ms
- Cable Type
- Flat, All black
- Connectors
- ATX/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
