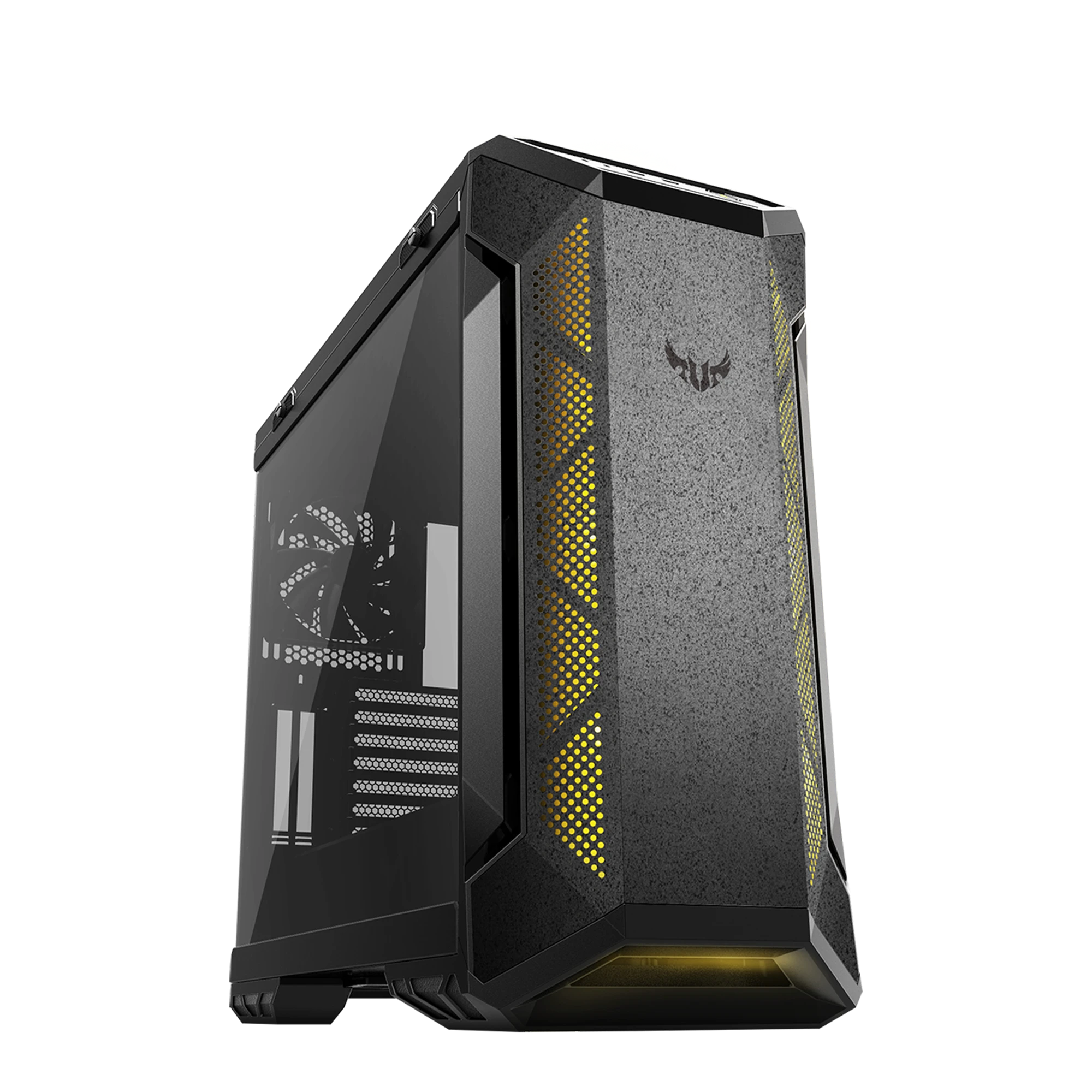

ASUS TUF GT501 GREY RGB Mid-Tower ATX Gaming Case
Motherboard Support
EATX (12″x10.9″)
ATX
Micro-ATX
Mini-ITX
ATX
Micro-ATX
Mini-ITX
Drive Bays
3 x 2.5″ Bay
4 x 2.5″/3.5″ Combo Bay
4 x 2.5″/3.5″ Combo Bay
Expansion Slots
7
2 (additional vertical)
2 (additional vertical)
Front I/O Port
1 x Headphone
1 x Microphone
2 x USB 3.1 Gen1
1 x Microphone
2 x USB 3.1 Gen1
Tempered Glass
Left Side
Radiator Support (Front)
120 mm
140 mm
240 mm
280 mm
360 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Rear)
120 mm
140 mm
140 mm
Cooling Support (Front)
3 x 120 mm
2 x 140 mm
2 x 140 mm
Cooling Support (Top)
3 x 120 mm
2 x 140 mm
2 x 140 mm
Cooling Support (Rear)
1 x 120 mm
1 x 140 mm
1 x 140 mm
Pre-installed Fans (Front)
3 x 120 mm
RGB
RGB
Pre-installed Fans (Rear)
1 x 140 mm
PWM
PWM
Maximum CPU Cooler Height
180mm
Maximum GPU Length
420mm
Maximum PSU Length
240mm
Removable Dust Filters
Front
Top
Bottom
Top
Bottom
Maximum Cable Management Space
30 mm
Dimensions
552 x 251 x 545 mm
