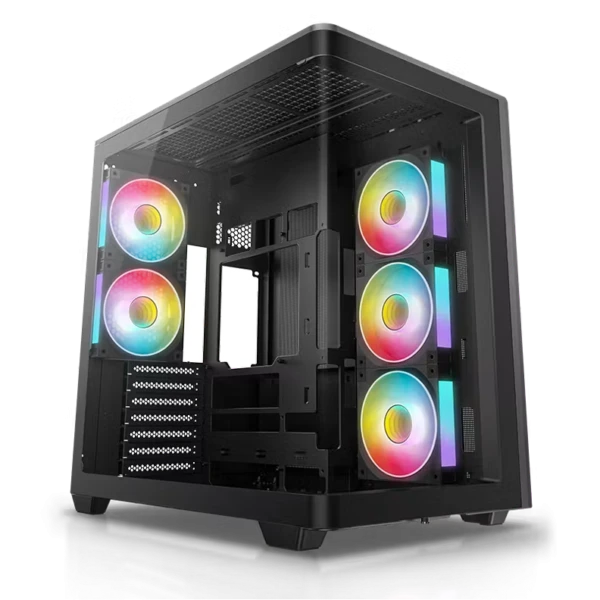

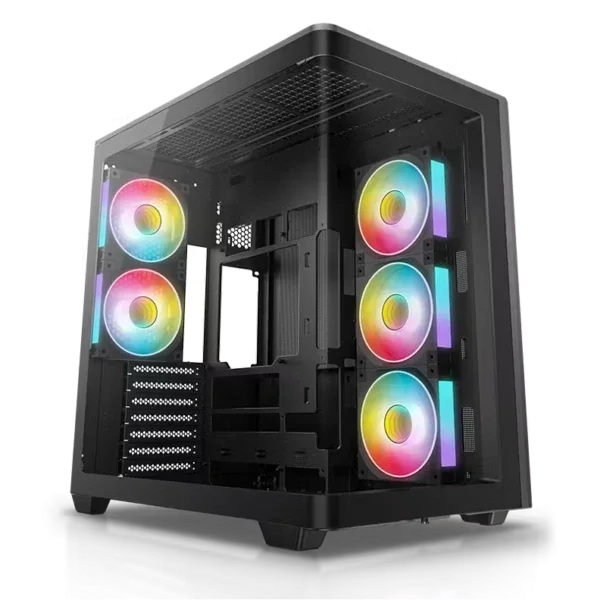

DeepCool CG590U 5F Single-Curve Glass ATX Case
Technical Spec
| Product Dimensions | 460x285x460mm(L×W×H) |
| Net Weight | 8.2Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0×2、Gen2 Type-C×1、Audio/Mic×1 |
| 3.5″ Drive Bays | 1+1 |
| 2.5″ Drive Bays | 2+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Side: 3x120mm Rear: 2x120mm |
| Fan Support | Top: 3×120/2x140mm Side: 3x120mm Rear: 2×120mm Bottom: 3×120mm |
| Radiator Support | Top: 120/140/240/280/360mm Side: 120/240/360mm Bottom:120/240/360mm Rear: 120mm |
| CPU Cooler Height Limit | 160mm |
| GPU Size Limit | 410mm |
| Power Supply Type | ATX PS2（maximum length: 210mm） |
