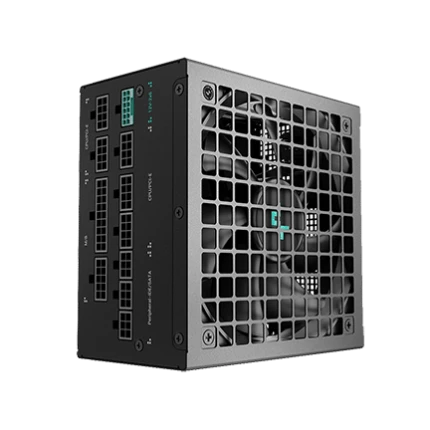

Deepcool PN1200M ATX3.1 80 Plus Gold Full Modular Power Supply –
Description
DEEPCOOL PN1200M 1200W ATX 3.1 Power Supply 80 Plus Gold – Full Modular with PCIe 5.1 12V-2X6 Cable – 10 Years Warranty
PN1200M
The DeepCool PN1200M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2×6, 5 EPS/PCIe ports, the PN1200M provides stable power for a wide range of modern high-power components.
FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN1200M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, half-bridge SRC LLC, and a DC-to-DC topology, the PN1200M can keep the hold-up time to = 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core 12V-2×6 cable, the PN1200M provides up to 600W for modern GPUs.
SLEEVED CABLES
The PN1200M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.
DYNAMIC FDB FAN
The PN1200M comes equipped with a dynamic 135mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN1200M will operate at altitudes up to 5000 meters above sea level.
IT WILL FIT!
Fitment into the vast majority of cases should not be an issue, as the PN1200M comes in at a compact 150x150x86mm size.
PEACE OF MIND
The PN1200M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
– Over Power Protection
– Over Voltage Protection
– Short Circuit Protection
– Over Temp Protection
– Over Current Protection
– Under Voltage Protection
– No Load Operation
– Surge & Inrush Protection
Type
ATX12V V3.1
Product Dimensions
150×150×86mm (W x L x H)
Efficiency certification
80Plus Gold
Fan Size
135mm
Fan Bearing
FDB (Fluid Dynamic Bearing)
Topology
Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors
Japanese Bulk Capacitor
Power Good Signal
100-150ms
Hold Up Time
=16ms(80% Load)
Efficiency
=90% Under Typical Load(50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature
0 – 40?
Regulatory
CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS
Erp Regulation
ErP 2014
Environment Protection
WEEE/RoHS/Triman/P65
MTBF
100,000 Hours
