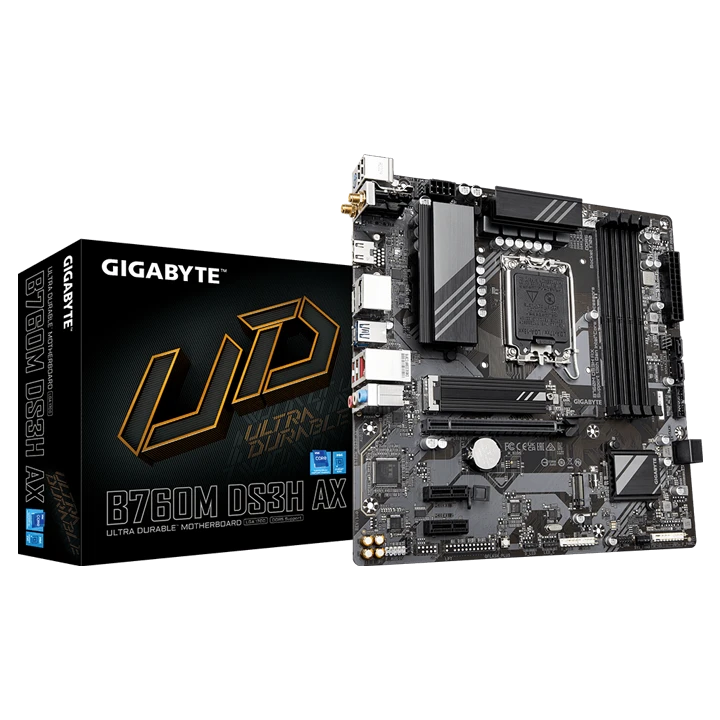

Gigabyte B760M DS3H AX DDR5 Motherboard (Wifi)
CPU
LGA1700 socket: Support for the14th, 13th, and 12th Generation Intel® Core™, Pentium® Goldand Celeron® Processors
L3 cache varies with CPU
(Please refer "CPU SupportList" for more information.)
Chipset
Intel® B760Express Chipset
Memory
Support for DDR5 7600(O.C.)/7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) /6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supportingup to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-bufferedDIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile(XMP) memory modules
(The CPU and memory configurationmay affect the supported memory types, data rate (speed), and number of DRAMmodules, please refer to "Memory Support List" for more
information.)
Onboard Graphics
Integrated GraphicsProcessor-Intel® HD Graphics support:
1 x HDMI port, supporting amaximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting amaximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x DisplayPort, supporting amaximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
(Graphics specifications may varydepending on CPU support.)
Support for up to triple-display at the same time
Audio
Realtek® AudioCODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software.To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® 2.5GbELAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ608 (MT7921K) (ForPCB rev. 1.0)
WIFI a, b, g, n, ac, ax,supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wirelessstandard
Intel® Wi-Fi 6EAX210 (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax,supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wirelessstandard
Intel® Wi-Fi 6EAX211 (For PCB rev. 1.2)
WIFI a, b, g, n, ac, ax,supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wirelessstandard
Realtek® Wi-Fi 6ERTL8852CE (For PCB rev. 1.3)
WIFI a, b, g, n, ac, ax,supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wirelessstandard
(Actual data rate may varydepending on environment and equipment.)
Expansion Slots
CPU:
1 x PCI Express x16 slot,supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
2 x PCI Express x1 slots,supporting PCIe 3.0 and running at x1
Storage Interface
CPU:
1 x M.2 connector (Socket 3, Mkey, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, Mkey, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID10 support for SATA storage devices
USB
Chipset:
1 x USB Type-C® porton the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 portson the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the backpanel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports availablethrough the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main powerconnector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header(For the GC-TPM2.0 SPI V2 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x HDMI port*
2 x DisplayPorts*
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port,with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Actual support may vary by CPU.
I/O Controller
iTE® I/OController Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooleryou install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE ControlCenter (GCC)
* Available applications in GCC may vary by motherboard model. Supportedfunctions of each application may also vary depending on motherboardspecifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® InternetSecurity (OEM version)
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Facto
Micro ATX Form Factor; 24.4cm x24.4cm
