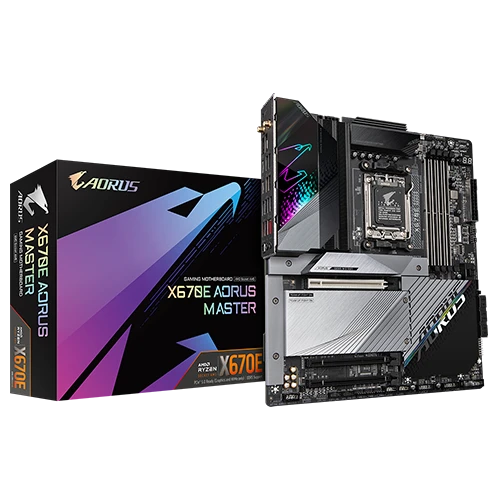

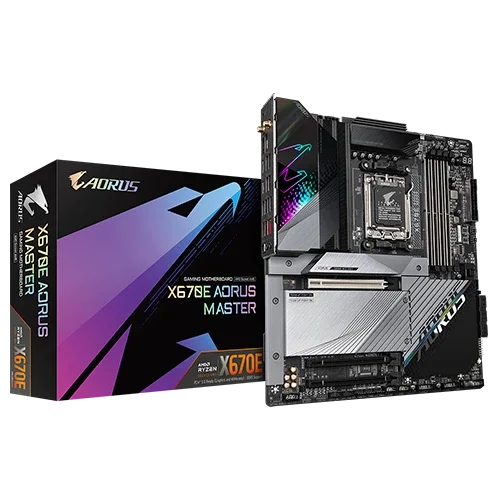

Gigabyte X670E Aorus Master ATX Motherboard
CPU
AMD Socket AM5, support for : AMD Ryzen™ 7000 / Ryzen™ 8000/ Ryzen™ 9000 Series Processors
(Please refer "CPU Support List" for moreinformation.)
Chipset
AMD X670
Memory
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB singleDIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memorymodules
Support for AMD EXtended Profiles for Overclocking (AMDEXPO™) and Extreme Memory Profile (XMP) memory module
(The CPU and memory configuration may affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to"Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x USB Type-C® port, supporting USB 3.2 Gen 2 andDisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel output
* You can change the functionality of an audio jack usingthe audio software. To configure
7.1-channel audio, access the audio software for audiosettings.
Support for S/PDIF Out
LAN
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrierfrequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbpsdata rate
AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrierfrequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbpsdata rate
(Actual data rate may vary depending on environment andequipment.)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 SeriesProcessors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or anNVMe SSD. If only one graphics card is to be installed, be sure to install itin the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running atx4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running atx2 (PCIEX2)
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU,supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMDRyzen™ 7000 Series Processors/ Ryzen™ 9000 SeriesProcessors support PCIe 5.0 x4/x2 SSD
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0x4/x2 SSD
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0x2 SSD
1 x M.2 connector (M2B_CPU), integrated in the CPU,supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 SeriesProcessors support PCIe 5.0 x4/x2 SSD
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0x4/x2 SSD
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0x4/x2 SSD
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in theChipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
6 x SATA 6Gb/s connectors
* The PCIEX2 slot shares bandwidth with the SATA3 4/5connectors. The SATA3 4/5 connectors will become unavailable when a device isinstalled in the PCIEX2 slot.
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storagedevices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
2 x USB 2.0/1.1 ports on the back panel
Chipset:
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 porton the back panel, 1 port available through the internal USB header)
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USBheaders
4 x USB 2.0/1.1 ports available through the internal USBheaders
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
Back Panel Connectors
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2support
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supportedwill depend on the fan(pump) you install.
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboardmodel. Supported functions of each application may also vary depending onmotherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
E-ATX Form Factor; 30.5cm x 26.9cm
