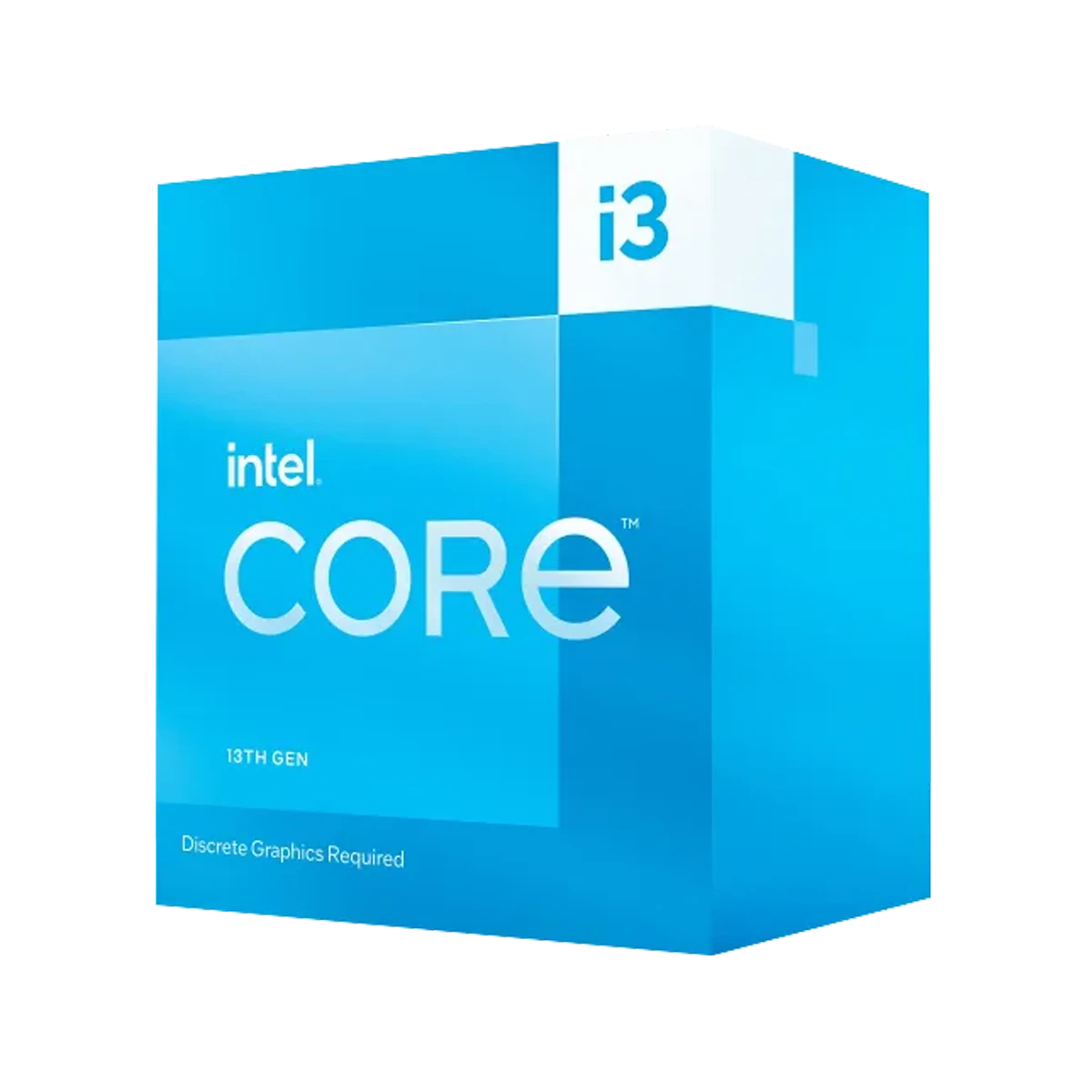

Intel® Core™ i3-13100 Processor
Essentials
Product Collection : 13th Generation Intel® Core™ i3 Processors
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number :i3-13100
Lithography : Intel 7
Use Conditions : PC/Client/Tablet
CPU Specifications
Total Cores : 4
of Performance-cores : 4
# of Efficient-cores : 0
Total Threads :8
Max Turbo Frequency : 4.50 GHz
Performance-core Max Turbo Frequency : 4.50 GHz
Performance-core Base Frequency :3.40 GHz
Cache : 12 MB Intel® Smart Cache
Total L2 Cache : 5 MB
Processor Base Power :60 W
Maximum Turbo Power : 89 W
Supplemental Information
Marketing Status : Launched
Launch Date : Q1'23
Embedded Options Available : Yes
Memory Specifications
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels : </strong2
Max Memory Bandwidth : 76.8 GB/s
Processor Graphics
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.50 GHz
Graphics OutputDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units : 24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support :12
OpenGL* Support : 4.5
OpenCL* Support :3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID :0x4692
Expansion Options
Direct Media Interface (DMI) Revision :4.0
Max # of DMI Lanes :8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes : 20
Package Specifications
Sockets Supported :FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification :PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) :Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology :2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 :Yes
Instruction Set :64-bit
Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States :Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies :Yes
Intel® Volume Management Device (VMD) :Yes
Security & Reliability
Intel® Threat Detection Technology (TDT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions :Yes
Secure Key : Yes
Intel® OS Guard :Yes
Execute Disable Bit :Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
