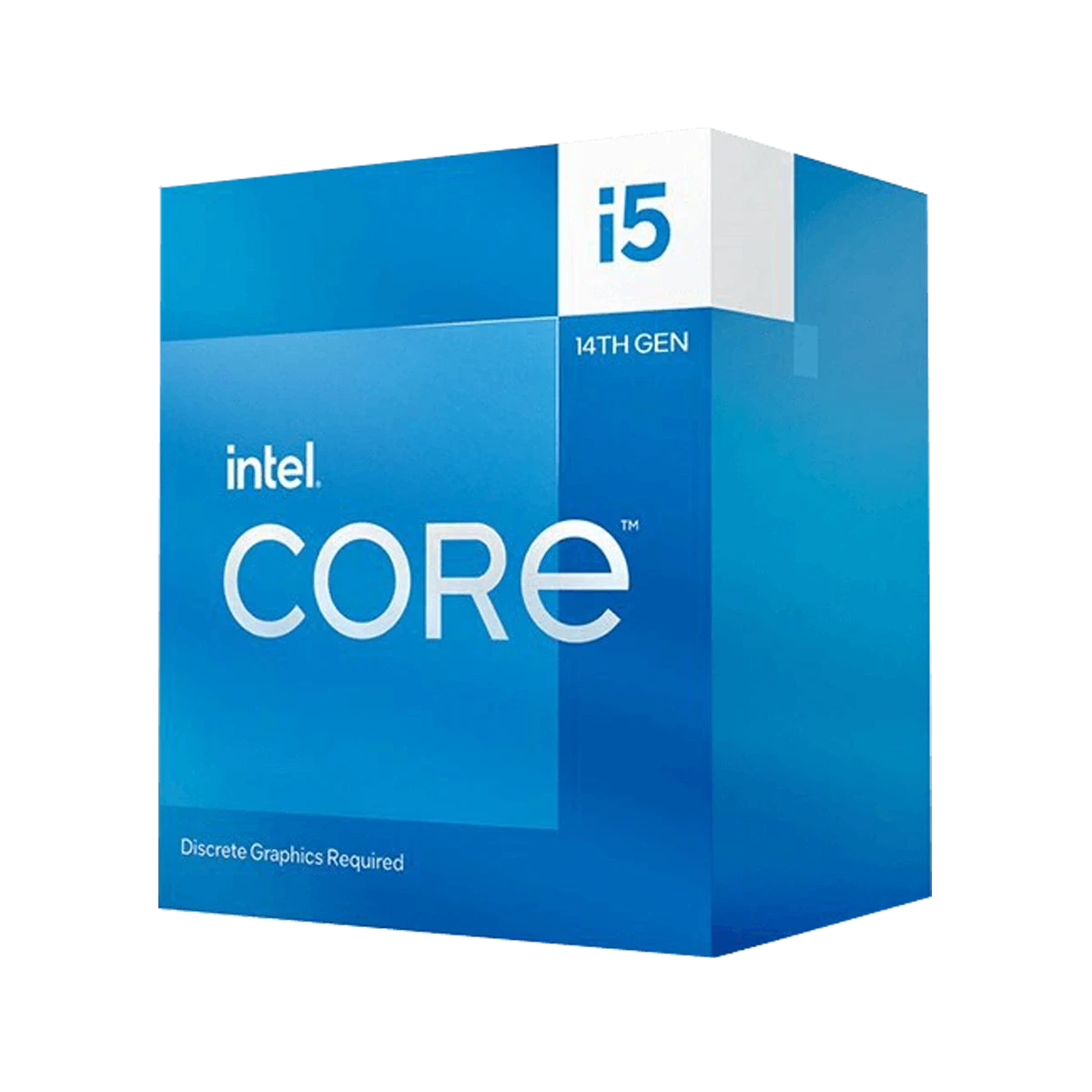

Intel® Core™ i5 processor 14400F
20M Cache, up to 4.70 GHz
Essentials
Product Collection: Intel® Core™ i5 processors (14th gen)
Code Name: Products formerly Raptor Lake
Vertical Segment: Desktop
Processor Number: i5-14400F
CPU Specifications
Total Cores: 10
# of Performance-cores: 6
# of Efficient-cores: 4
Total Threads: 16
Max Turbo Frequency: 4.7 GHz
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core Base Frequency: 2.5 GHz
Efficient-core Base Frequency: 1.8 GHz
Cache: 20 MB Intel® Smart Cache
Total L2 Cache: 9.5 MB
Processor Base Power: 65 W
Maximum Turbo Power: 148 W
Supplemental Information
Launch Date: Q1'24
Embedded Options Available: No
Use Conditions: PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision: 4.0
Max # of DMI Lanes: 8
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: ‡ Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes: 20
Package Specifications
Sockets Supported: FCLGA1700
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2020C
TJUNCTION: 100°C
Package Size: 45.0 mm x 37.5 mm
Max Operating Temperature: 100 °C
Advanced Technologies
Intel® Volume Management Device (VMD): Yes
Intel® Gaussian & Neural Accelerator: 3.0
Intel® Thread Director: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Hyper-Threading Technology: Yes
Intel® 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Security & Reliability
Intel® Standard Manageability (ISM): Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® AES New Instructions: Yes
Secure Key: Yes
Intel® OS Guard: Yes
Execute Disable Bit: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® VT-x with Extended Page Tables (EPT): Yes
