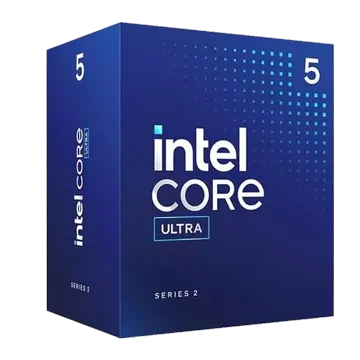

Intel® Core™ Ultra 5 Processor 225
20M Cache, up to 4.90 GHz
Essentials
Product Collection: Intel® Core™ Ultra Processors (Series 2)
Code Name: Products formerly Arrow Lake
Vertical Segment: Desktop
Processor Number: 225
Overall Peak TOPS (Int8): 23
CPU Specifications
Total Cores: 10
# of Performance-cores: 6
# of Efficient-cores: 4
Total Threads: 10
Max Turbo Frequency: 4.9 GHz
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Performance-core Base Frequency: 3.3 GHz
Efficient-core Base Frequency: 2.7 GHz
Cache: 20 MB Intel® Smart Cache
Total L2 Cache: 22 MB
Processor Base Power: 65 W
Maximum Turbo Power: 121 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography: TSMC N3B
Supplemental Information
Embedded Options Available: Yes
Use Conditions: PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type): 256 GB
Memory Types: Up to DDR5 6400 MT/s
Max # of Memory Channels: 2
ECC Memory Supported ‡: No
GPU Specifications: GPU Name‡
Intel® Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.8 GHz
GPU Peak TOPS (Int8): 4
Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Xe-cores: 2
Max Resolution (HDMI)‡: 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP)‡: 8K @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡: 4K @ 60Hz
DirectX* Support: 12
OpenGL* Support: 4.5
OpenCL* Support: 3
Intel® Quick Sync Video: Yes
# of Displays Supported ‡: 4
Device ID: 0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
NPU Specifications
NPU Name‡: Intel® AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Suppor: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel® Thunderbolt™ 4: Yes
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations ‡: Up to 1×16+2×4, 2×8+2×4,
1×8+4×4
Max # of PCI Express Lanes: 24
Package Specifications
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2022C
Max Operating Temperature: 105 °C
Advanced Technologies
Intel® Gaussian & Neural Accelerator: 3.5
Intel® Thread Director: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Technology ‡: 2.0
Intel® 64 ‡: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡: Yes
Intel® Secure Key: Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® AES New Instructions: Yes
Intel® Trusted Execution Technology ‡: Yes
Execute Disable Bit ‡: Yes
Intel® OS Guard: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel® Virtualization Technology (VT-x) ‡: Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes
Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
