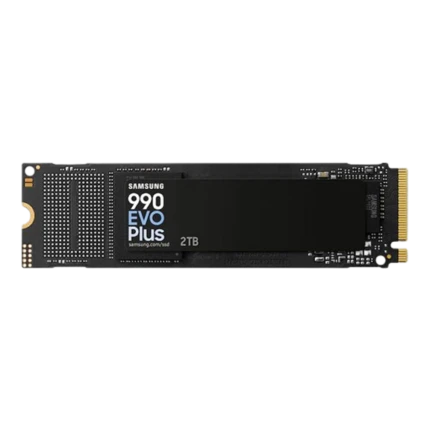

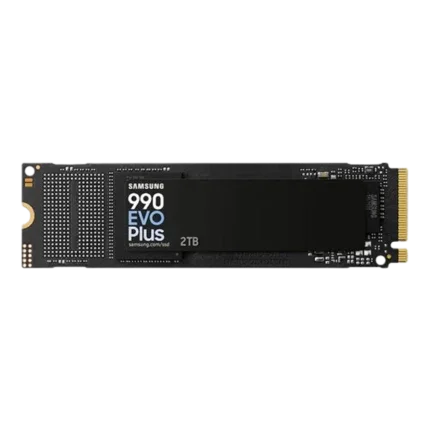

Samsung 990 Evo PLUS 4TB NVME M.2 SSD
- The 990 EVO Plus brings boosted sequential read/write speeds up to 7,250/6,300MB/s.
- Harness the full power of your drive with the enhanced large-file performance of Intelligent TurboWrite 2.0—now available in 4TB capacity.
- Keep your cool as you work—or play—with no worries about overheating or battery life, thanks to an efficiency-boosting nickel-coated controller.
- Optimized to support the latest technology for SSDs—990 EVO Plus is compatible with PCIe 4.0 x4 and PCIe 5.0 x2.
- General Information
Product Type
Internal SSD
Cache Memory
HMB (Host Memory Buffer)
Interface (thru IMB)
PCIe Gen 4.0 x4, PCIe Gen 5.0 x2, NVMe 2.0
Product
M.2 2280
Capacity
4TB
Capacity
4TB
Interface (thru IMB)
PCIe® 4.0 x4 / 5.0 x2 NVMe ™ 2.0
Form Factor
M.2 (2280)
- Performance
Seq. Read/Write (MB/s)
7,250 / 6,300
Ran. Read/Write (IOPS ,QD32)
1,050K / 1,400K
- Power
Active (Read/Write)
5.5W / 4.8W
Device Sleep (L1.2)
Typical 60mW / Typical 5mW
- Data Encryption
Data Encryption
Class 0 (AES 256) , TCG/Opal v2.0, MS eDrive (IEEE1667)
- Total Bytes Written (TBW)
Total Bytes Written (TBW)
2,400
- Type
Usage Application
Client PCs
- Key Features
Internal Storage
Yes
NVMe
Yes
Gaming SSDs
Yes
- Hardware
NAND
Samsung V NAND TLC (V8)
Controller
In-House Controller
- Dimensions (W x H x D)
Product
0.9 x 0.1 x 3.2 (in.)
Package Size
3.9 x 0.9 x 5.6 (in.)
Inner Box Size
7.2 x 5.4 x 9.4 (in.)
Master Box Size
37.0 x 10.4 x 18.0 (in.)
