Exhale the Smoothness
- Simplify Assembly
- Optimized Airflow design
- Support Motherboards up to E-ATX
- Up to 420mm Liquid Cooling Compatible
- Support Vertical GPU Installation
- Modular Easy Installation
- Full-Size Tempered Glass Side Panel
- With USB 3.0 x2 and USB 3.1 Gen2 Type-C x1 on I/O panel
- RGB Fusion 2.0
- Pre-installed 4 fans with ARGB & PWM Connector Hub
Optimized Airflow Design
The AORUS C500 GLASS comes with the large mesh front and the vented top panel, delivering generous airflow with premium aesthetics.
Max Cooling Potential
The large interior offers extra space that allows users to add 3 more 120mm fans on top of the space that houses the triple 120mm fans in both the front and roof position along with a radiator.
The AORUS C500 GLASS is compatible with every single AORUS component and has room to hold up to E-ATX motherboards and radiators up to 420mm, providing users with the upmost flexibility.
Like a Pro
A series of grooves and cutouts are located behind the board and along the case edges for smart and tidy cable management, which can shorten your building time.
Easy to Install. Easy to Use.
Easy-Access Swing Door Front Panel
The swing door design allows easy front access without having to remove the entire panel, which avoids the risk of detaching any cables by accident.
PSU Installation Made Easy
The PSU can be mounted on the mounting plate without removing any screw, making it convenient for users to assemble. This design is also more flexible to install and remove components when upgrading equipment.
Hidden Power. Succinct Beauty.
The PSU shroud is designed to shield messy and intertwined power cables while isolating the heat generated from the PSU.
The filters keep your PC from accumulating dust, while maintaining optimal cooling performance. The top and front magnetic filters, along with the removable filter at the bottom, make maintenance easy.
Tempered Glass Panel with Anti-Dropping Design
The 4mm tempered glass side panel is thoughtfully designed to be removed by tilting out the top first to prevent accidental drops. The non-drilled design further improves the glass panel’s strength and safety.
Versatile Front I/O. Real 11 Core Cable.
The 2 USB 3.0 ports use the 11-core USB cables to ensure stable signal integrity. The front I/O also offers versatile connectivity, including a USB 3.1 Gen-2 Type-C port and an audio port.
RGB Fusion 2.0
With 16.7M customizable colour options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
*The type of RGB lighting effect depends on the MB support.
- Double Flash
ARGB & PWM Connector Hub
The built-in ARGB and PWM connector hub is equipped with 5x 5V 3-pin and 5x PWM connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous rig.

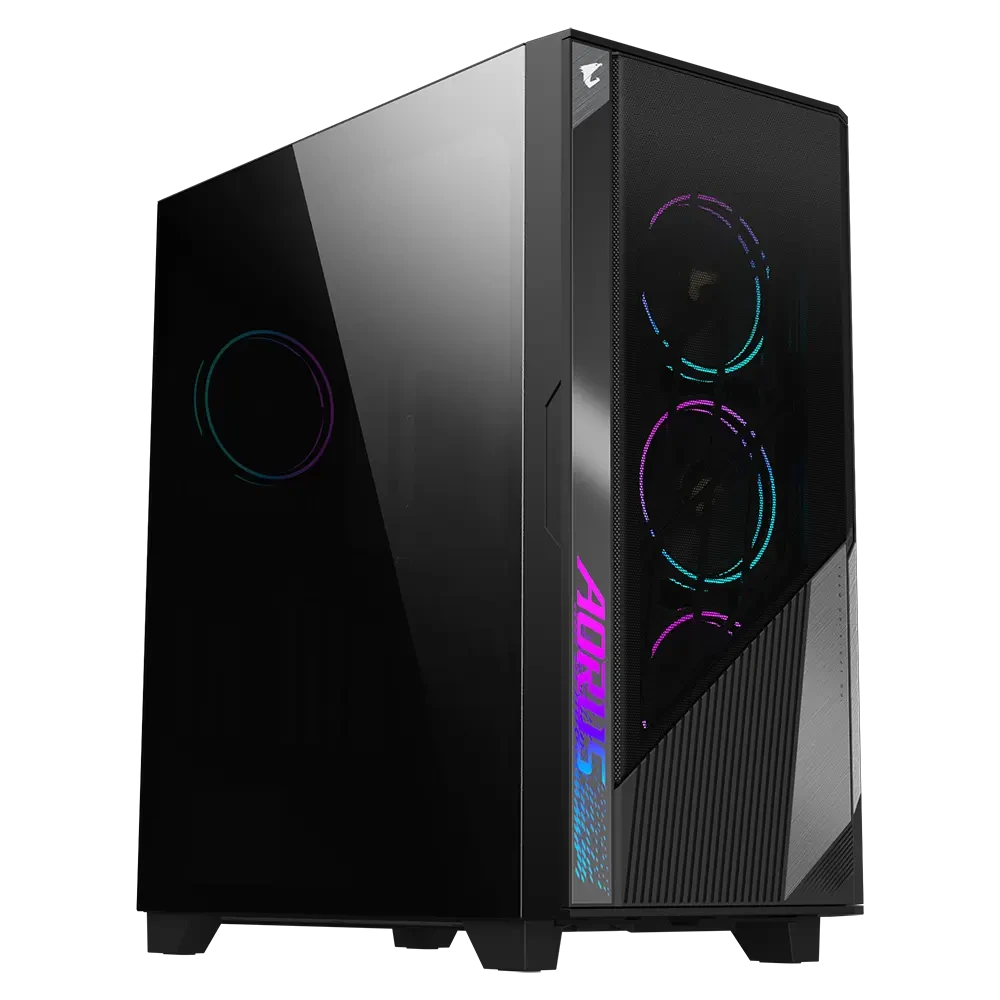

AORUS C500 GLASS Mid Tower Gaming Casing Spec –
|Case Form Factor||Mid Tower|
|M/B Type||Mini ITX / Micro ATX / ATX / E-ATX|
|Materials||Steel, Plastic, Glass|
|Dimensions||H=548 W=250 D=482 mm (Within ± 1% error)|
|Expansion slots||8 + 3 (Requires PCIE Riser Cable)|
|5.25″ Drive Bays||None|
|3.5“/2.5” Drive Bays||2|
|2.5″ Drive Bays||2|
|I/O Panel||USB 3.1 Gen2 Type-C x1 / USB 3.0 x2 / Audio In & Out
(supports AC97 /HD Audio)
|Pre-installed Fan||Front : 120mm x3 (ARGB & PWM)
Rear : 120mm x1 (ARGB & PWM)
|Fan Support||Front : 120mm x3 / 140mm x3
Top : 120mm x3 / 140mm x2
Rear : 120mm x1 / 140mm x1
|Radiator Support||Front : Max 420mm
Top : Max 360mm
Rear : 140mm
|Power Supply Type||Standard ATX (Not included)|
|Maximum Compatibility||CPU Height : 190mm
GPU Length : 420mm
PSU Length : 220mm
|Vertical GPU Mount||Yes (Default: 73mm total clearance / VGA holder bracket: 160mm total clearance)|
|Dust Filters||Top, Front, Bottom|
|RGB Lighting||Yes (Support RGB Fusion 2.0)|
|Weight||N.W. 13.4 Kg|
|Package Dimensions||H=594 W=336 D=584 mm|
2. Accessories kit
