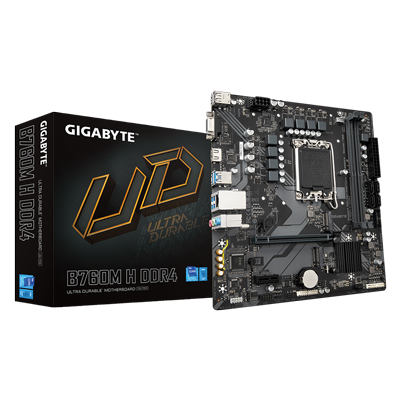

Gigabyte B760M H DDR4 Ultra Durable Motherboard
රු39,000.00
or 3 X රු13,000.00 with
- Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
- Unparalleled Performance:Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR4:2*DIMMs XMP Memory Module Support
- Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch:PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks:GbE LAN
- Extended Connectivity:HDMI, D-Sub
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Out of stock
SKU:
Gigabyte B760M H DDR4 Ultra Durable Motherboard
Categories: Components, Motherboards, Intel Motherboards
Description
 Gigabyte B760M H DDR4 Ultra Durable Motherboard Specification –
-
CPULGA1700 socket: Support for the 13th and 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer to “CPU Support List” for more information.) -
ChipsetIntel® B760 Express Chipset
-
MemorySupport for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.) -
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.) -
AudioRealtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out -
LANRealtek® GbE LAN chip (1 Gbps/100 Mbps)
-
Expansion SlotsCPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 -
Storage InterfaceCPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices -
USBChipset:
– 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) -
Internal I/O Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper -
Back Panel Connectors2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks -
I/O ControlleriTE® I/O Controller Chip
-
H/W MonitoringVoltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install. -
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 -
Unique FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash -
Bundled SoftwareNorton® Internet Security (OEM version)
LAN bandwidth management software -
Operating SystemSupport for Windows 11 64-bit
Support for Windows 10 64-bit -
Form FactorMicro ATX Form Factor; 23.0cm x 21.5cm
Additional information
Brand |
Gigabyte |
---|---|
Chipset |
Intel B760 |
Socket type |
Intel 1700 12th / 13th Gen |
Warranty |
03 Years |
