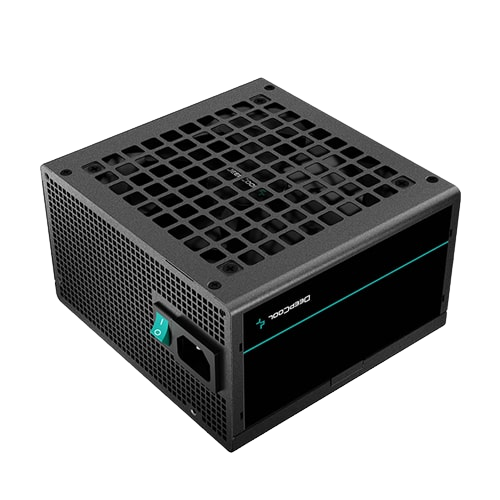

DeepCool PF550 80+ Power Supply Features –
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
- TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.
- SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
- FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
- RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
DeepCool PF550 80+ Power Supply Specification –
|Product Dimensions||150×140×86mm (W x L x H)|
|80PLUS Certifications||230V EU White|
|Fan Bearing||Hypro Bearing|
|Topology||Active PFC+Double tube forward|
|Capacitors||Taiwan bulk capacitor|
|Power Good Signal||100-500ms|
|Hold Up Time||≥16ms(75% Load)|
|Efficiency||≥85% Under Typical Load(50% Loading)|
|Erp Regulation||ErP 2010|
Main Power Connector 24 (20+4)Pin x1
EPS 12V Connector 8 (4+4)Pin x1
PCI-E (6+2)Pin x2
SATA x3 + 4Pin Peripheral x1
