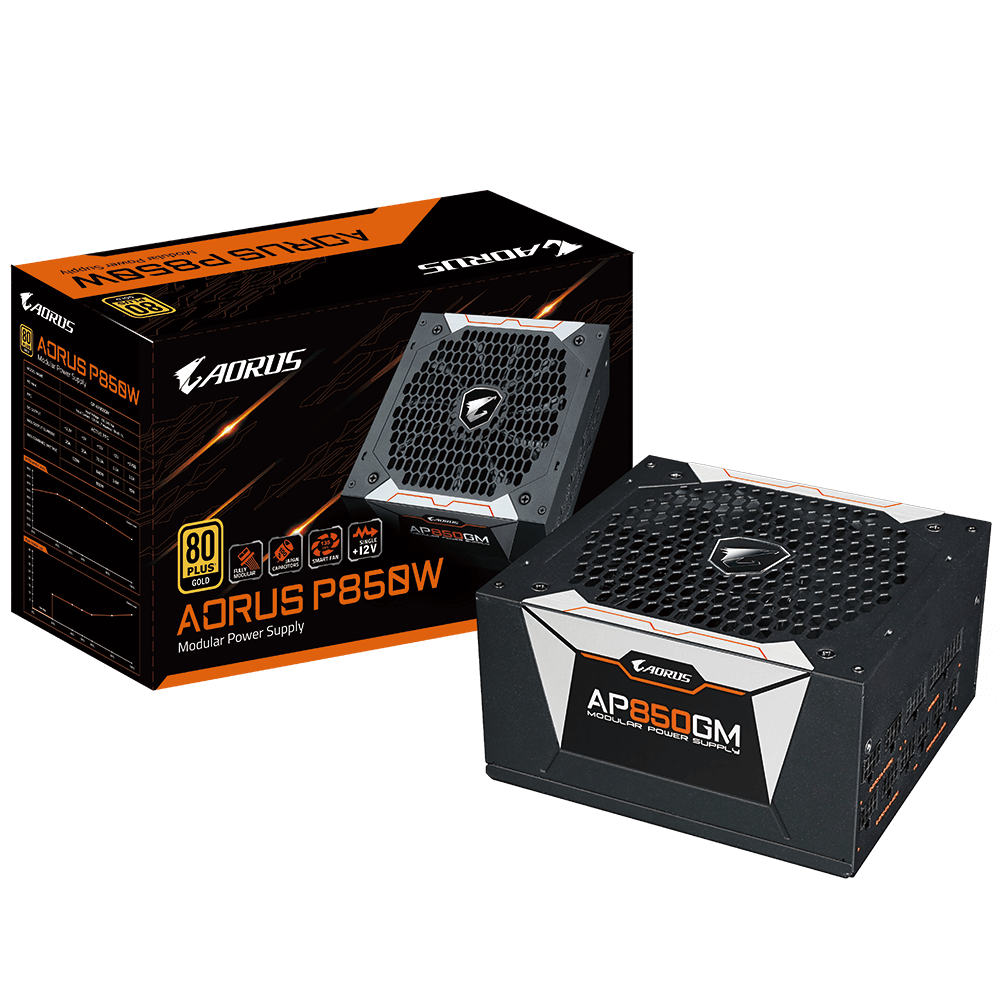

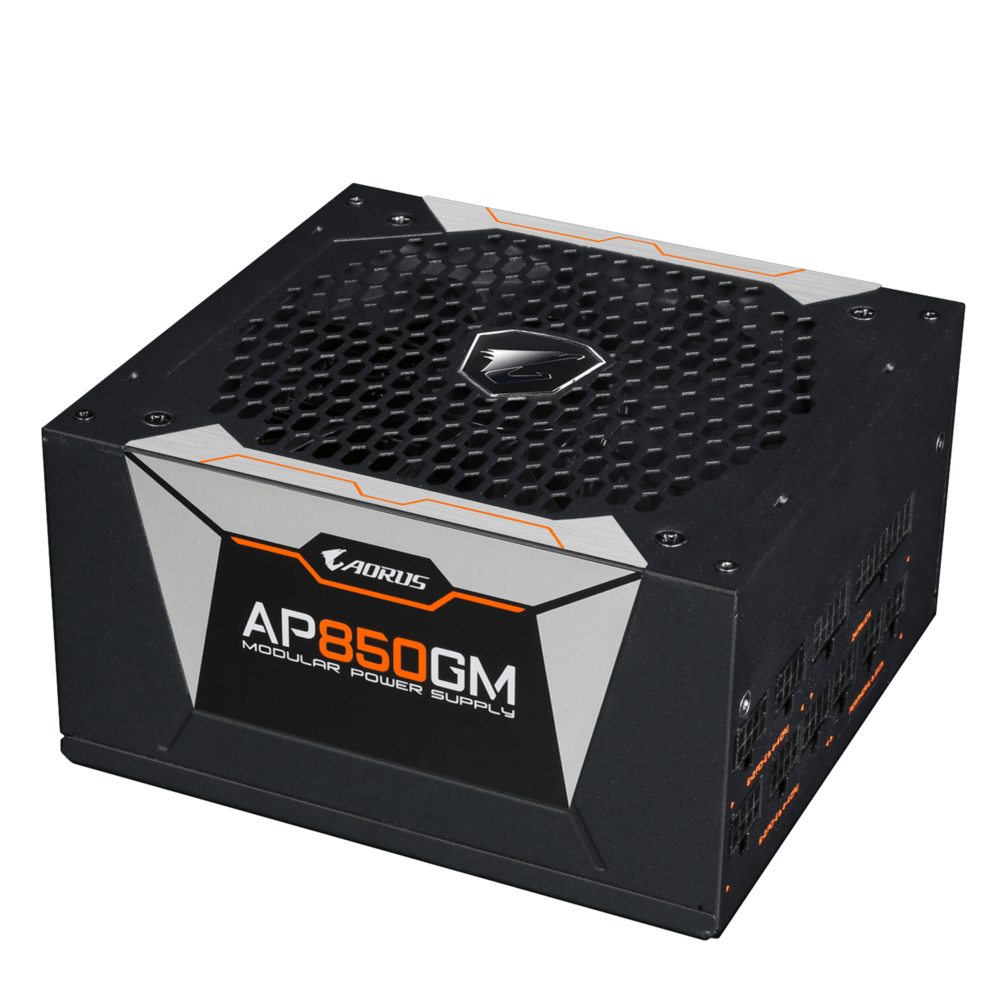

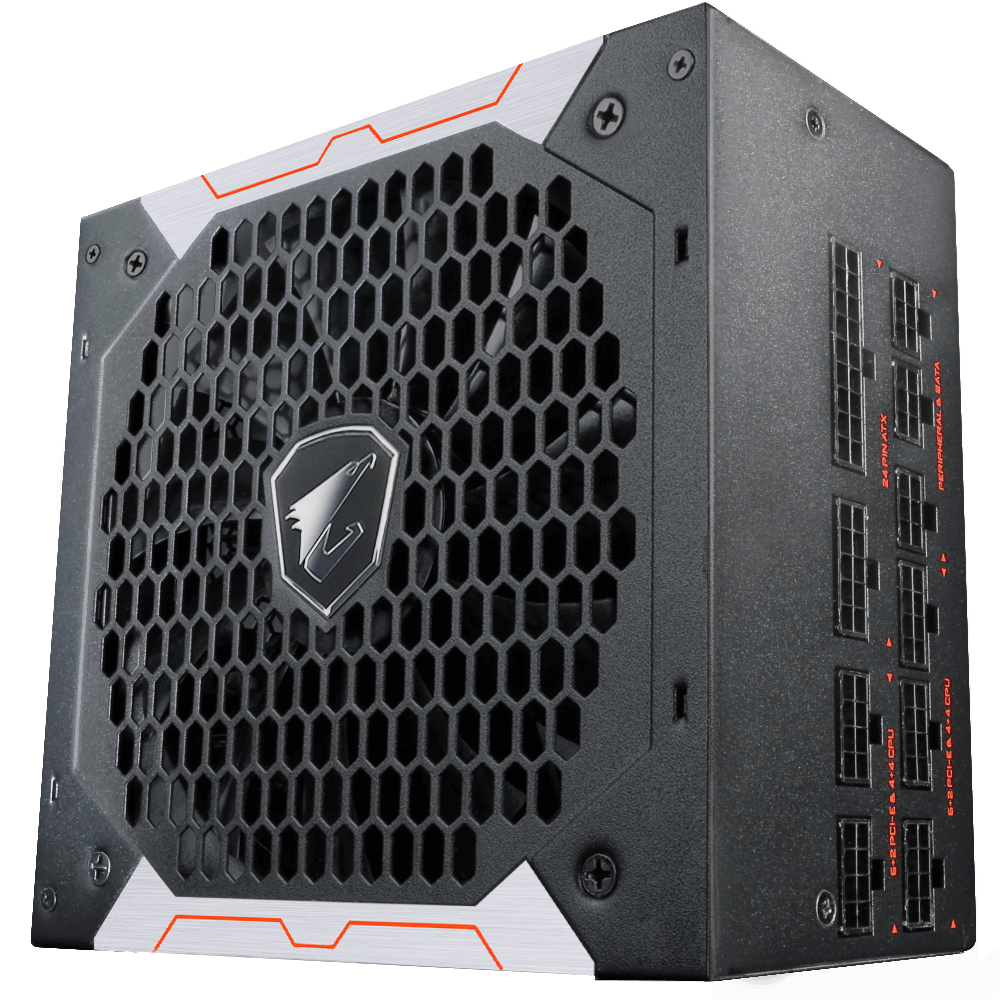

Gigabyte AORUS P850W 80 Plus Gold Fully Modular Power Supply
-
ModelGP-AP850GM
-
TypeIntel Form Factor ATX 12V v2.31
-
PFCActive PFC (>0.9 typical)
-
Input Voltage100-240 Vac (full range)
-
Input Current10A
-
Input Frequency47-63 Hz
-
Output Capacity850W
-
Dimension150 x 160 x 86mm
-
Fan Type135mm Double ball bearing fan
-
80 PLUSGold
-
Efficiency90% at typical load
-
MTBF>100,000 hours
-
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
-
Power Good Signal100ms ~ 150ms
-
Hold Up Time> 16m sec at full load (115V)
-
Cable TypeFlat, All black
-
ConnectorsATX/MB 20+4 Pin x 1 : 650mm
CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2
SATA x6 + 4 Pin Peripheral x2 :
550mm+100mm+100mm+100mm*1
450mm+100mm+100mm+100mm *1
4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
4 Pin Floppy x 1 : 100mm
